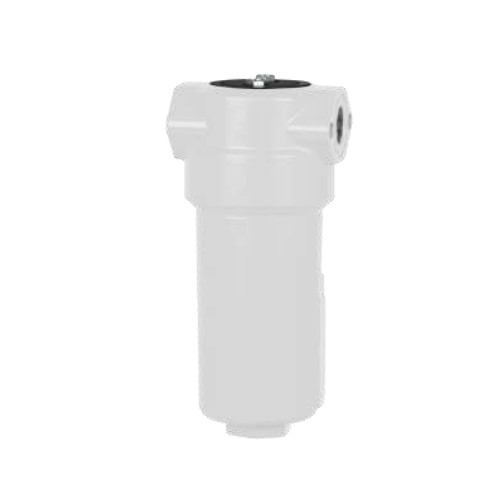

AAF02FC- Aluminium Compressed Gas Filter for Oxygen

£50.00£1,197.50

AAFO2FC series of filter housings have been specifically developed for high efficient removal of solid particles from compressed Oxygen applications.

SKU: N/A Category:

Description

Condensate Drains

AAF O2FC series of filter housings have been specifically developed for high efficient removal of solid particles from compressed Oxygen applications.

Applications

  • General industrial application
  • Medical
  • Food and beverage
  • Petrochemical
  • Waste water treatment

Materials

Housing Material Aluminium
Fittings, Screws Brass, Brass-zinc plated, Steel
Cover PA6
Sealing FKM
Corrosion Protection Electrophoretic Coating (KTL)
Outside Protection Powder Paint Coated (Epoxy-polyester base)
Lubricants Berulub OX 40 EP (Oxygen compatible)



Technical Specification

Operating Temperature 1,5 – 65 °C 35 – 149 °F
Operating Pressure 0 – 16 bar(g) 0 – 232 psi

See attached HERE



Additional information

Pipe Size & Flow Rate

1/8", 6 scfm, 1/4", 11 scfm, 1/4", 15 scfm, 3/8", 18 scfm, 1/4", 22 scfm, 3/8", 35scfm, 1/2", 46 scfm, 3/4", 70 scfm, 1", 116 scfm, 1", 197 scfm, 1 1/2", 300 scfm, 1 1/2", 459 scfm, 2", 588 scfm, 2", 882 scfm, 2 1/2", 990 scfm, 3", 1270 scfm, 3", 1620 scfm

Filter Element

RO2 (1 micron), MO2 (0.1 micron), SO2 (0.01 micron), Housing Only
