AKW Series Aftercoolers (16 bar)

£992.00£14,429.50

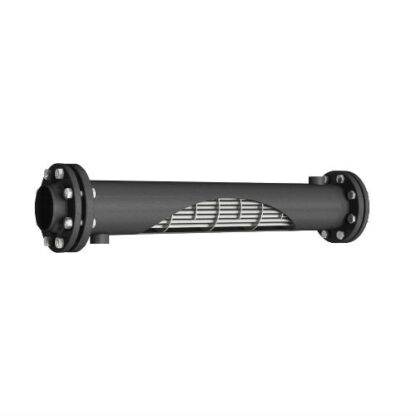

AKW – Water-cooled aftercooler series has been designed to reduce compressed air temperature thus water vapour content in compressed air system.

Technical Data:

Clear
SKU: N/A Categories: ,

Description

Technical Data:

AKW – Water-cooled aftercooler series has been designed to reduce compressed air temperature thus water vapour content in compressed air system. Hot compressed air/gas passes through the tubes. Cooling water passes around the tubes in counter flow. AKW aftercooler ensures the maximum performance and protection of all equipment, such refrigeration dryers, adsorption dryers and filters, positioned downstream of this unit.

Characteristics:

operating pressure  16 bar
connections  DN50 to DN500
operating temperature range         1,5 to 200 °C
flow rate  132 to 45570 Nm3/h
standard colour  RAL 9005

Applications:

• Automotive
• Electronics
• Food & Beverage
• Chemical
• Petrochemical
• Plastics
• Paint
• General industrial application
Technical Data:
Model Connections Flow Capacity (*) Operating Pressure
Fixed Bundle Air Water Nm³/h scfm bar
AKW 010 F DN50 DN20 132 78 0 – 16
AKW 018 F DN50 DN20 235 138 0 – 16
AKW 030 F DN50 DN20 367 216 0 – 16
AKW 047 F DN50 DN20 661 389 0 – 16
AKW 070 F DN50 DN20 955 562 0 – 16
AKW 094 F DN80 DN20 1323 779 0 – 16
AKW 150 F DN80 DN20 2205 1298 0 – 16
AKW 240 F DN125 DN32 3087 1817 0 – 16
AKW 300 F DN125 DN32 3969 2336 0 – 16
AKW 450 F DN200 DN50 7056 4153 0 – 16
AKW 600 F DN200 DN65 8967 5278 0 – 16
AKW 900 F DN250 DN80 11025 6489 0 – 10
AKW 1200 F DN300 DN80 16170 9517 0 – 10
AKW 1500 F DN400 DN100 22050 12978 0 – 10
AKW 1800 F DN400 DN150 26460 15574 0 – 10
AKW 2500 F DN450 DN200 33810 19900 0 – 10
AKW 3000 F DN500 DN200 45570 26821 0 – 10

*Refers to 1 bar and 20°C at 7 bar operating pressure and inlet temperature 120°C.

Dimensions:

Model A [mm] B [mm]
AKW 010 F 806 60.3
AKW 018 F 816 60.3
AKW 030 F 816 60.3
AKW 047 F 870 60.3
AKW 070 F 870 60.3
AKW 094 F 1500 88.9
AKW 150 F 1510 88.9
AKW 240 F 1300 139.7
AKW 300 F 1300 139.7
AKW 450 F 1300 219
AKW 600 F 1300 219
AKW 900 F 1300 273
AKW 1200 F 1300 323.9
AKW 1500 F 1300 406
AKW 1800 F 1300 406
AKW 2500 F 1300 457
AKW 3000 F 1300 508

Additional information

Model

AKW 010F, AKW 018F, AKW 030F, AKW 047F, AKW 070F, AKW 094F, AKW 150F, AKW 200F, AKW 240F, AKW 300F, AKW 375F, AKW 450F, AKW 600F, AKW 900F, AKW 1200F, AKW 1500F, AKW 1800F, AKW 2500F, AKW 3000F
