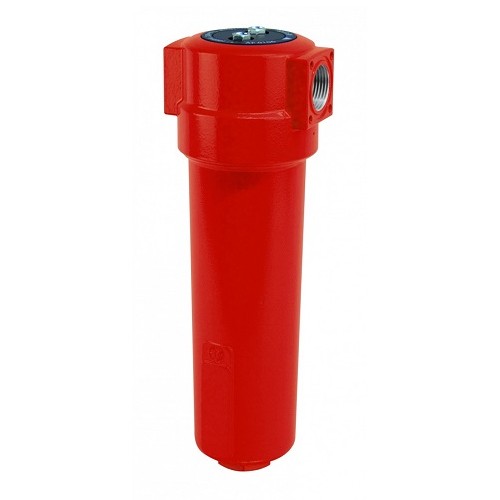

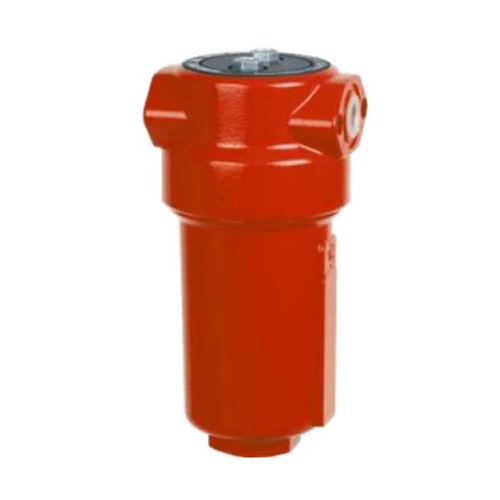

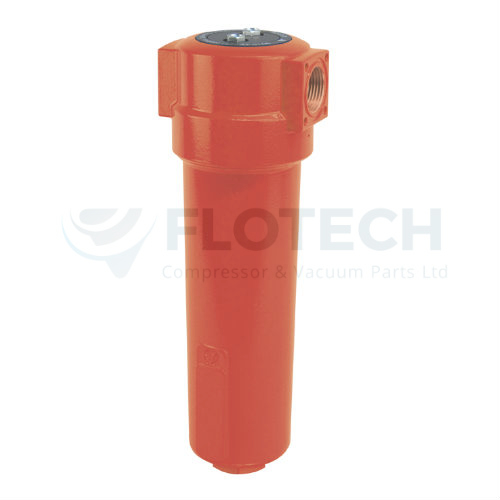

AAFsFC- Silicone Free Filter Housing (16 bar)

£49.00 – £951.00

AAFsFC filter housings have been specifically developed for high efficient removal of solid particles, water, oil aerosols, hydrocarbons, odour and vapours from compressed air systems.

Technical Data:

SKU: N/A Categories: , , ,

Description

Condensate Drains

MCDFC -1/2″ Stainless Steel Manual Condensate Drain

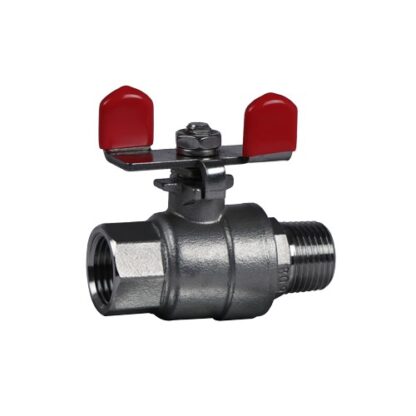

             Drain Valve













AAFsFC filter housings have been specifically developed for high efficient removal of solid particles, water, oil aerosols, hydrocarbons, odour and vapours from compressed air systems. In addition the filter housing was designed for easy installation. To meet the required compressed air quality appropriate filter element must be installed into filter housing.

Characteristics

Operating Pressure 16 bar
Volume Flow Rate 60 – 2760 Nm³/h
Connections 3/8″ – 3″
Operating Temp. Range 1,5 – 65 °C
Standard Colour RAL 3020

Applications

  • Painting
  • Automotive Industry
  • Food Beverage
  • Chemical

Technical Specification

Operating temperature                1,5 – 65 °C                          35 – 149 °F

Operating pressure                         0 – 16 bar(g)                      0 – 232 psi

Materials

Housing Materials Aluminium
Fittings & Screws Brass, Brass-Zinc plated, Steel
Cover PA6
Sealing NBR (silicone free)
Corrosion Protection Electrophoretic Coating (KTL)
Outside Protection Powder paint coated (Epoxy-polyester base)
Lubricant –

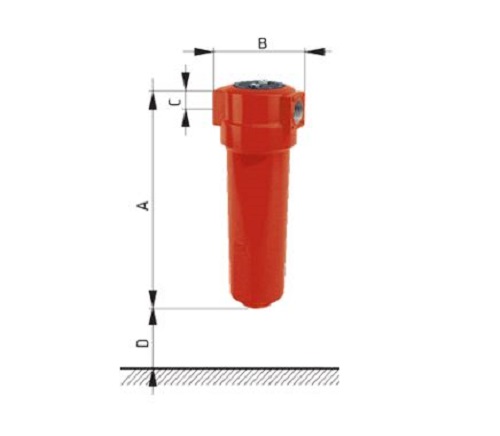

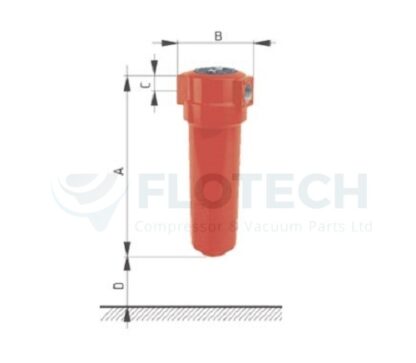

Sizes

See attached PDF

Additional information

Pipe Size & Flow Rate

1/8" – 6 scfm, 1/4" – 11 scfm, 1/4" – 15 scfm, 3/8 " – 18 scfm, 1/4" – 22 scfm, 3/8" – 35 scfm, 1/2" – 46 scfm, 3/4" – 70 scfm, 1" – 116 scfm, 1" – 197 scfm, 1 1/2" – 300 scfm, 1 1/2" – 459 scfm, 2" – 588 scfm, 2" – 882 scfm, 2 1/2" – 990 scfm, 3" – 1,270scfm, 3" – 1,620 scfm
Filter Element

3 micron Prefilter, 1 micron Prefilter, 0,1 micron Microfilter, 0,01micron Finefilter, Activated Carbon, Housing Only
