AMD Refrigerant Dryers

£516.43£5,241.70

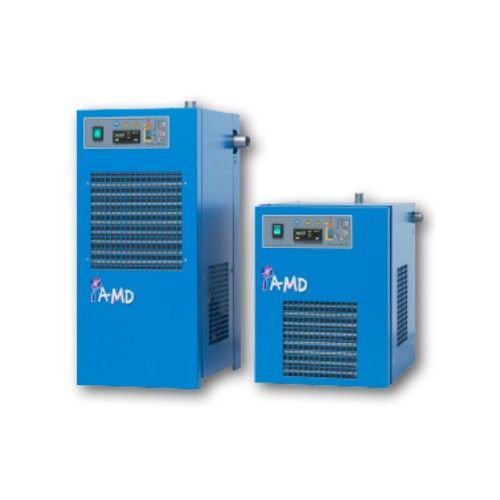

AMD (Aluminium Modular Dryers) dryers achieve excellent performance even in instances of high ambient and high inlet temperatures.

Technical Data:

Clear
SKU: N/A Categories: ,

Description

Technical Data:

Model Number Flow Rate Connections     Weight  Inlet pressure   max bar g
m³/h l/min scfm  BSP-F  (kg)
AMD 3 21 350 12 G ⅜” 23 16
AMD 6 36 600 21 G 1/2″ 27 16
AMD 9 57 950 34 G 1/2″ 28 16
AMD 12 72 1,200 42 G 1/2″ 30 16
AMD 18 108 1,800 64 G 1/2″ 34 16
AMD 25 150 2,500 88 G 1″ 38 14
AMD 32 192 3,200 113 G 1.1/4″ 43 14
AMD 43 258 4,300 152 G 1.1/4″ 45 14
AMD 52 312 5,200 184 G 1.1/4″ 45 14
AMD 61 366 6,100 216 G 1.1/2″ 66 14
AMD 75 450 7,500 265 G 1.1/2″ 68 14
AMD 105 630 10,500 371 G 2″ 107 14
AMD 130 780 13,000 459 G 2″ 109 14
AMD 168 1,008 16,800 594 G 2.1/2″ 164 14
AMD 190 1,140 19,000 671 G 2.1/2″ 189 14
AMD 220
1,320 22,000 777 G 2.1/2″ 212 14

AMD (Aluminium Modular Dryers) dryers achieve excellent performance even in instances of high ambient and high inlet temperatures.

The highly efficient and ultra compact heat exchanger is able to operate effectively in ambient temperatures up to 45°C and inlet temperatures of 55°C, ensuring a reduced compressed air pressure drop.

AMD dryers are sized to match standard compressor outputs. E.g. a 15 kW (20 HP) air compressor with theoretical output of 2400 l/min at 7 bar matches the AMD 25 rated at 2500 l/min.
It is therefore unnecessary to select a larger model.
Air Compressor ↔ Dryer combination is tested and certified by FRIULAIR, within operating limits shown on technical data.

Additional information

Model Number

AMD 3 (12 scfm, 21 m³/h), AMD 6 (21 scfm, 36m³/h), AMD 9 (34 scfm, 57 m³/h), AMD 12 (42 scfm, 72 m³/h), AMD 18 (64scfm, 108 m³/h), AMD 25 (88 scfm, 150 m³/h), AMD 32 (113 scfm, 192 m³/h), AMD 43 (152 scfm, 258 m³/h), AMD 52 (184 scfm, 312 m³/h), AMD 61 (216 scfm, 366 m³/h), AMD 75 (265 scfm, 450m³/h), AMD 105 (371 scfm, 630 m³/h), AMD 130 (459 scfm, 780 m³/h), AMD 168 (594 scfm, 1,008 m³/h), AMD 190 (671 scfm, 1,140 m³/h), AMD 220 (777 scfm, 1,320 m³/h)
