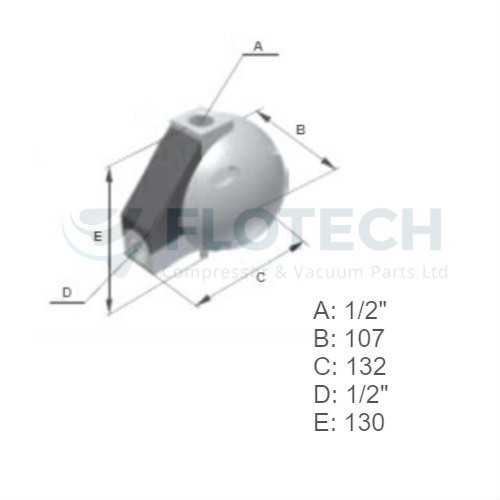

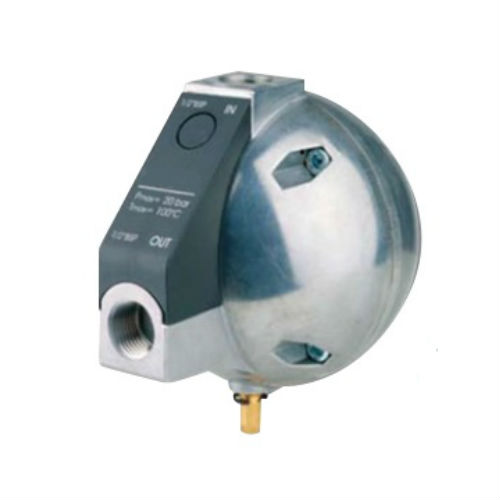

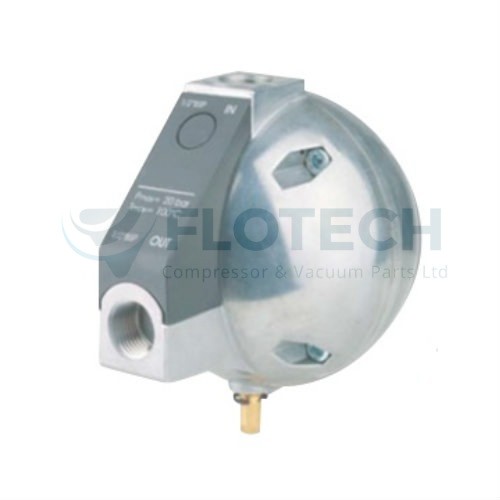

Automatic Condensate Drain – AOK20BFC – ½”

£43.00£64.00

External Float Type – Automatic Condensate Drain is designed for fully automatic discharging of condensate or any other non-aggressive fluid from compressed air systems.

Technical Data:

Description

Automatic Condensate Drain is designed for fully automatic discharging of condensate or any other non-aggressive fluid from compressed air systems. It is easy to install and can be used in a variety of applications.

Please click here to see all of our Inline Filtration Housings.

Technical Data:

Applications: cyclone condensate separator, air filter
Operating temp: 1.5 – 65°C (35-149°F)
Operating pressure: 0 – 20 bar (0 – 290 psi)
Drain Capacity: 167 l/h
Dry Mass: 0.6 kg
Connection In: G½” (NPT option)
Connection Out: G½” (NPT option)
Medium : Condensate (air, water, oil)



Additional information

With Nipple

Yes, No
