Oil/Water Condensate Units – SOW-CD

SOW CD is intended for systems, where amount of generated condensate exceeds capacity of single largest available SOW water oil separator.

Please call us on +353 1 846 4303 for quotation or any queries.

Description

SOW CD is intended for systems, where amount of generated condensate exceeds capacity of single largest available SOW water oil separator.

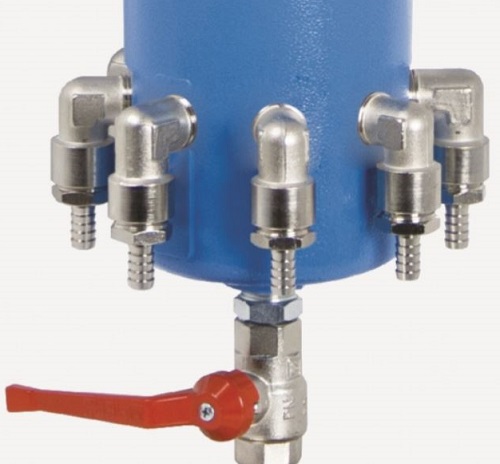

SOW CD can evenly distribute collected condensate between up to three SOW 35 water oil separators. SOW CD is equipped with flow distributor on the inlet port, up to 8 hose tail connections mounted on elbows for convenient outlet, manual ball valve for cleaning purpose and vent port for safe aeration. Optional wall mounting kit is available. Maximum capacity in regard to free air delivery, when connected to SOW 35 is 120 Nm3/min.

Characteristics:

operating temp. range       1,5 to 65 °C
inlet connection sizes 3/4” to 3
standard colour       RAL 5012

Applications:

• automotive
• electronics
• food & Beverage
• chemical
• petrochemical
• plastics
• paint
• general industrial application

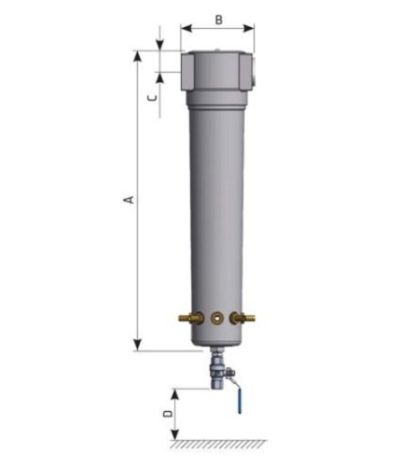

Type

Pipe Size Hosetail connections Dimensions Volume Mass
Inch pcs A B C D L KG
SOW-CD 2 3/4″ 2 257 88 20 140 0,6 1,2
SOW-CD 4 1 1/2″ 4 461 125 32 140 2,8 3
SOW-CD 8 2″ 8 684 163 43 140 6,0 6
SOW-CD 12 3″ 12 795 240 59 140 20,0 12,9
