Description

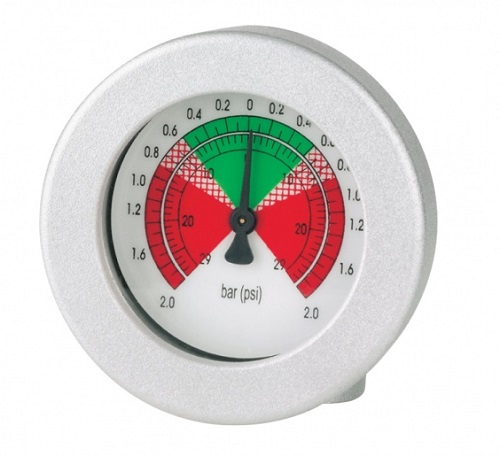

Pressure Drop Indicator is designed for accurate indication of pressure drop across the filter element in compressed air system. It’s optimized for installation on the head of the filter housing and can be used in variety of applications. For applications not listed please contact producer or your local distributor.
Characteristics:
| Operating Pressure | 20 bar |
| Operating Temperature Range | 1,5 to 65ºC |
Applications:
- Automotive
- Electronics
- Food & Beverage
- Chemical
- Petrochemical
- Plastics
- Paint
- General industrial application
Technical Data:
| Operating Pressure Range | 0-20 bar (0-290 psi) |
| Operating Temp. Range | 1,5 – 65ºC (35-149ºF) |
| Mass | 0,36 kg |
| Measuring Range | 2 bar(29 psi) |

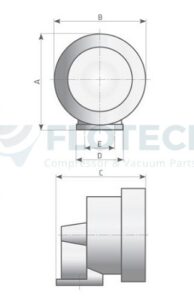

| Dimensions | |
| A | 84 mm |
| B | 80 mm |
| C | 78 mm |
| D | ø40 mm |
| E | 24 mm |
