Description
Technical Data:
| Pressure Drop (Green Area) | 0 – 0,6 bar (0 – 8,7 psi) |
| Pressure Drop (Red Area) | 0,6 – 0,9 bar (8,7 – 13 psi) |
| Max. Operating Pressure | 16 bar (232 psi) |
| Operating Temperature Range | 1,5 – 65°C (35 – 149°F) |
| Mass | 0,03 kg |

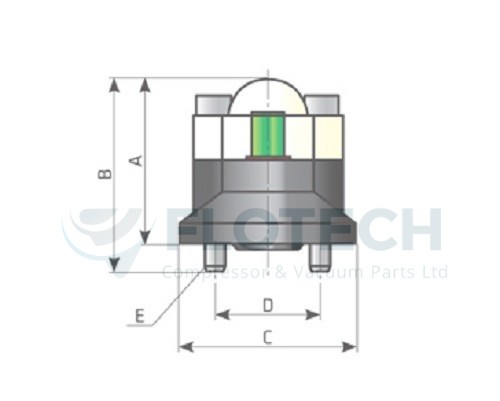

Dimensions (mm):
| A | 33 |
| B | 43 |
| C | 40 |
| D | 24 |
| E | M5 |
