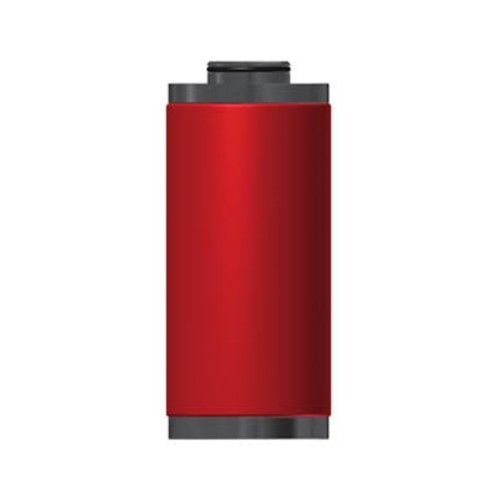

Domnick Hunter Oil-X Plus – AO

£21.80£127.60

Technical Data:

Particle retention 0,1 µm
Solids – q. class (ISO 8573-1) 2
Oils -q. class (ISO 8573-1) 2
Filter Media borosilicate micro fibres
Operating temp. range [°C] 1,5 to 65
Diff. pressure (new) [mbar] 50

To meet the required compressed air quality appropriate filter element must be installed into filter housing. FDH filter housings are compatible with DOMNICK HUNTER filter cartridges.

Filter Housing Model Pipe Size Flow rate Dimensions [mm] Mass
inch Nm³/h A B C D kg
FDH009 1/4″ 32 196 80 21 60 0,547
FDH017 3/8″ 61 266 80 21 60 0,545
FDH030 1/2″ 108 266 80 21 60 0,760
FDH058 3/4″ 216 363 117 33 120 2,245
FDH145 1 1/2″ 522 461 117 33 260 2,504
FDH220 2″ 792 700 140 50 320 2,876
FDH330 2″ 1188 950 140 50 520 7,224
FDH430 3″ 1548 811 217 69 630 13,060
FDH620 3″ 2232 1000 217 69 750 9,797



Filter Housing Model Filter Element Type
FDH009 009
FDH017 017
FDH030 030
FDH058 058
FDH145 145
FDH220 220
FDH330 330
FDH430 430
FDH620 620
Clear

Description

Technical Data:

Particle retention 0,1 µm
Solids – q. class (ISO 8573-1) 2
Oils -q. class (ISO 8573-1) 2
Filter Media borosilicate micro fibres
Operating temp. range [°C] 1,5 to 65
Diff. pressure (new) [mbar] 50

To meet the required compressed air quality appropriate filter element must be installed into filter housing. FDH filter housings are compatible with DOMNICK HUNTER filter cartridges. See housings HERE.

Filter Housing Model Pipe Size Flow rate Dimensions [mm] Mass
inch Nm³/h A B C D kg
FDH009 1/4″ 32 196 80 21 60 0,547
FDH017 3/8″ 61 266 80 21 60 0,545
FDH030 1/2″ 108 266 80 21 60 0,760
FDH058 3/4″ 216 363 117 33 120 2,245
FDH145 1 1/2″ 522 461 117 33 260 2,504
FDH220 2″ 792 700 140 50 320 2,876
FDH330 2″ 1188 950 140 50 520 7,224
FDH430 3″ 1548 811 217 69 630 13,060
FDH620 3″ 2232 1000 217 69 750 9,797



Filter Housing Model Filter Element Type
FDH009 009
FDH017 017
FDH030 030
FDH058 058
FDH145 145
FDH220 220
FDH330 330
FDH430 430
FDH620 620

Additional information

Model & Flow Rate

FDH009 – 32 Nm³/h, FDH017 – 61 Nm³/h, FDH030 – 108 Nm³/h, FDH058 – 216 Nm³/h, FDH145 – 522 Nm³/h, FDH220 – 792 Nm³/h, FDH330 – 1188 Nm³/h, FDH430 – 1548 Nm³/h, FDH620 – 2232 Nm³/h
