Description

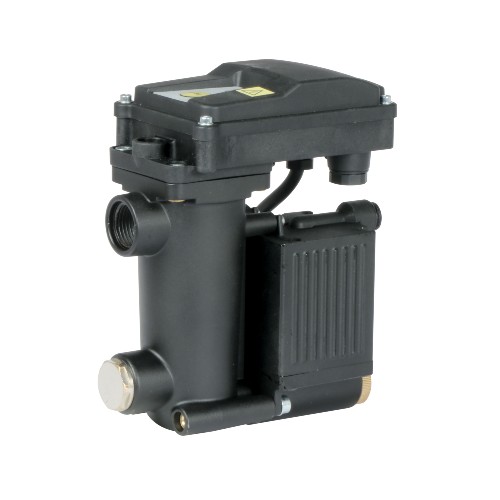

EMD25C (Service Network Connection)is an electronically controlled condensed water drain that discharges water trapped in the lowest parts of compressed air installation out of the system. This water is a condensed water vapor that is always present in the atmosphere. Because of laws of physics, some vapor always condenses during compression of air.
Range Flow Rate:
Click Here
Technical Data:
| Type | EMD25C (230 V) | EMD25C (115 V) |
| Service Network Connection | Yes | Yes |
| Alarm Output | No | No |
| Voltage | 230 V-AC, 50 – 60 Hz | 115 V-AC, 50 – 60 Hz |
| Fuse inside EMD12 | 5 x 20 1A T | 5 x 20 1A T |
| Power | 10 VA | 10 VA |
| Operating pressure range | 0 – 16 Bar, 0 – 232 psi | 0 – 16 Bar, 0 – 232 psi |
| Drain capacity (@ 7 bar, 101 psi) | 12 l/h, 0.0007 cfm | 12 l/h, 0.0007 cfm |
| Operating temp. range | 1,5°C – 65°C | 1,5°C – 65°C |
| Protection class | 54 | 54 |
| Inlet connection | G 1/2″ (parallel thread) | G 1/2″ (parallel thread) |
| Outlet connection | Push connection for tube ∅8 | Push connection for tube ∅8 |
| Mass | 0.55 kg | 0.55 kg |
