Description

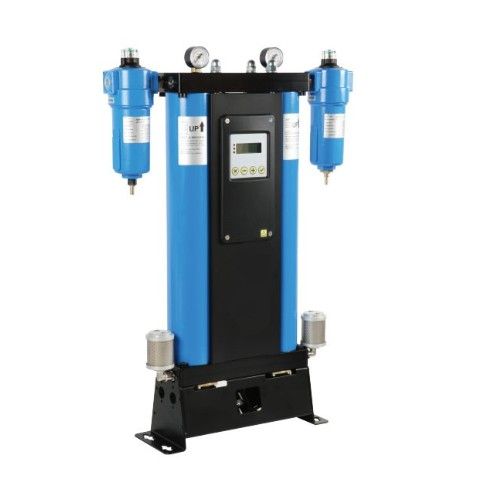

The A-DRYFC adsorption air dryer is designed to extract water vapor from the compressed air and thus to reduce the dew point in the system.
A-DRYFC dryers are products that offer the user a wide range of air drying solutions with a volume flow from 6 Nm3 / h to 200 Nm3 / h. The new innovative design of AA-DRY adsorption dryers with a minimum number of components enables fast and reliable installation, use and servicing. The dryer also contains a controller that is ready for use.
| Operating pressure | 4 to 16 bar |
|---|---|
| Temp. obm. operation | 1.5 to 50 ° C |
| Dew point pressure point | -25 ° C / -40 ° C / -70 ° C |
| Flow | 6 to 600 Nm³h |
| Standard colour | RAL 5012 |
| Average compressed air consumption | 15 – 20% |
Technical Data
| Model | Connection | Nominal Volume Flow | Mass | |
| (IN/OUT) inch | Inlet (Nm³/h) | Outlet (Nm³/h) | KG | |
| A-DRYFC 06 | G3/8” | 6 | 4.7 | 10.5 |
| A-DRYFC 12 | G3/8” | 12 | 9.4 | 13.5 |
| A-DRYFC 24 | G3/8” | 24 | 19 | 19 |
| A-DRYFC 36 | G3/8” | 36 | 28.4 | 27.5 |
| A-DRYFC 60 | G1/2” | 60 | 47.4 | 45 |
| A-DRYFC 75 | G1/2” | 75 | 59.3 | 53 |
| A-DRYFC 105 | G3/4” | 105 | 83 | 70 |
| A-DRYFC 150 | G1” | 150 | 118.5 | 170.5 |
| A-DRYFC 200 | G1” | 200 | 158 | 182.2 |
Dimensions
| Model | A | A* | B | B* | C | C* |
| A-DRYFC 06 | 339 | 404 | 288 | 352 | 100 | 120 |
| A-DRYFC 12 | 573 | 638 | 288 | 352 | 100 | 120 |
| A-DRYFC 24 | 1041 | 1106 | 288 | 352 | 100 | 120 |
| A-DRYFC 36 | 1509 | 1574 | 288 | 352 | 100 | 120 |
| A-DRYFC 60 | 1041 | 1106 | 370 | 434 | 148 | 170 |
| A-DRYFC 75 | 1275 | 1340 | 370 | 434 | 148 | 170 |
| A-DRYFC 105 | 1743 | 1808 | 370 | 434 | 148 | 170 |
| A-DRYFC 150 | 1345 | 1455 | 440 | 570 | 198 | 240 |
| A-DRYFC 200 | 1538 | 1648 | 440 | 570 | 198 | 240 |
