Description

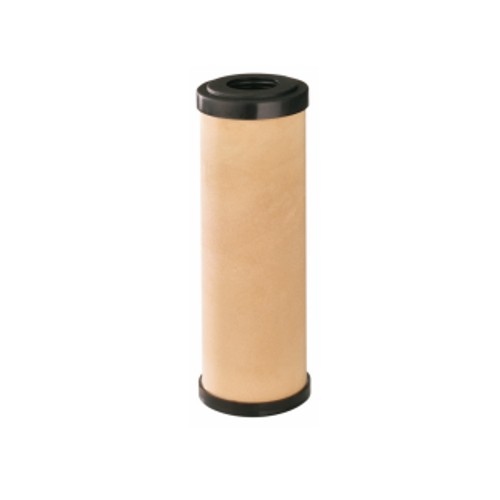

Inline Prefilter Element – particulate.
Applicable to Silicone Free filters, Aluminum Compressed filters, Welded Carbon Steel Compressed filters, Cast Aluminum High Pressure Compressed filters, Carbon Steel High Pressure Compressed Filters.
Rating according to ISO 8573-1
Solid Particales | Class 6 |
Water | – |
Oils | – |
High efficient removal of coarse solid particles and bulk liquids from compressed air.
Material | activated fibres, celulose |
Differential pressure (dry) | 10 mbar |
Operating temperature | 1,5 – 65°c |
Particle retention (nominal) | 99,99 % (3µm) |
Particle retention rate ISO | 95 % |
Flow Rate:
Filter Element Type | Pipe Size | Flow Rate [Nm³/h] |
3528 | 1/8″ | 10 |
3844 | 1/4″ | 25 |
3844 | 3/8″ | 30 |
6050 | 3/8″ | 60 |
7050 | 1/2″ | 78 |
14050 | 3/4″ | 120 |
12075 | 1″ | 198 |
22075 | 1″ | 335 |
32075 | 1 1/2″ | 510 |
50075 | 1 1/2″ | 780 |
51090 | 2″ | 1000 |
76090 | 2″ | 1500 / 1680 |
51140 | 2 1/2″ | 2160 |
75140 | 3″ | 2760 |
76090 | 3″ | 1680 |
