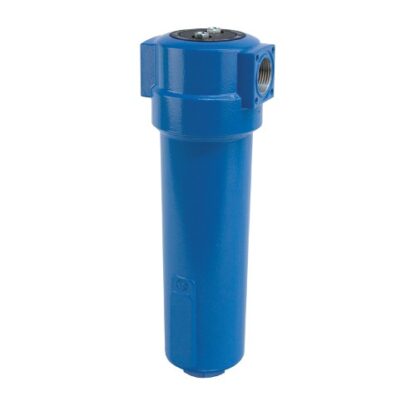

P-VAC Series – Vacuum Pump Protection Filters (20 to 2,000 mbar)

£52.03£461.39

P-VAC filters are designed for protection of vacuum pumps. These filters are optimized for high-efficient removal of solid particles and other contamination from the suction side of vacuum pumps preventing damage to the pump.

Technical Data:

Click HERE to see all P-VAC Series Filter Elements.

Clear

Description

P-VAC filters are designed for protection of vacuum pumps. These filters are optimized for high-efficient removal of solid particles and other contamination from the suction side of vacuum pumps preventing damage to the pump. Two filtration stages are available for P-VAC filters. Rough prefilter “VACP” removes bulk liquid and large solid particles, while high efficiency microfilter VACM removes very fine impurities which may damage the pump.

Characteristics:

operating pressure  20 to 2000 mbar(abs)
 volume flow rate  7,5 to 345 Nm3/h
 connections  3/8’’ to 3’’
 operating temp. range       1,5 to 65 °C
 standard colour  RAL 5012

Applications:

Vacuum Pumps

Technical Data:

Filter Housing Size
Pipe Size Pressure
Dimensions
Mass

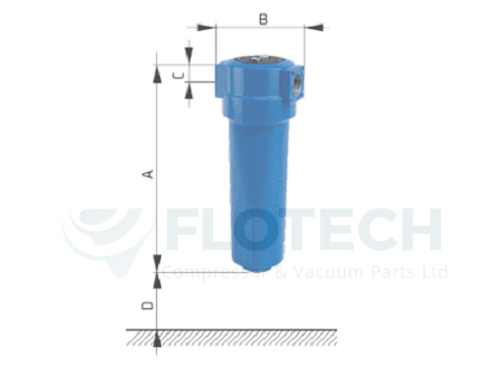

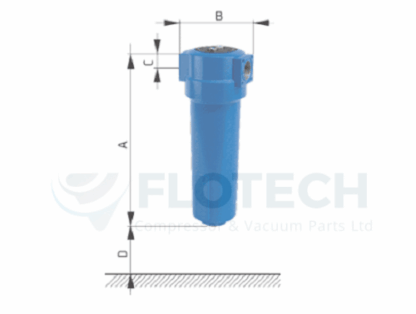

inch Nm³/h scfm A B C D KG
P-VAC 0056 3/8’’ 7.5 4.5 187 88 20 60 0.7
P-VAC 0076 1/2’’ 9.8 5.8 187 88 20 60 0.7
P-VAC 0106 3/4’’ 15 8.8 257 88 20 80 0.8
P-VAC 0186 1’’ 24.8 14.6 263 125 32 100 1.8
P-VAC 0306 1’’ 41.9 24.7 363 125 32 120 2.5
P-VAC 0476 1 1/2’’ 63.8 37.6 461 125 32 140 2.5
P-VAC 0706 1 1/2’’ 97.5 57.4 640 125 32 160 3.2
P-VAC 0946 2’’ 125 73.6 684 163 43 520 5.1
P-VAC 1506 2’’ 187 110.4 935 163 43 770 7.1
P-VAC 1756 2 1/2’’ 210 123.6 935 163 43 770 6.9
P-VAC 2006 3’’ 270 158.9 795 240 59 630 12.9
P-VAC 2406 3’’ 345 203 1000 240 59 780 14

Correction Factors:

Absolute pressure [bar] 1 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0.05 0.02
Absolute pressure [psi] 14.7 13 11.6 10.2 8.7 7.3 5.8 3.3 2.9 1.45 0.73 0.29
Correction factor 1 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0.05 0.02

Filter Element Type [VACP 3µm or VACM 0,1µm]:

Filter Housing Size Filter Element Type
P-VAC 0056 6050
P-VAC 0076 7050
P-VAC 0106 14050
P-VAC 0186 12075
P-VAC 0306 22075
P-VAC 0476 32075
P-VAC 0706 50075
P-VAC 0946 51090
P-VAC 1506 76090
P-VAC 1756 76090
P-VAC 2006 51140
P-VAC 2406 75140

Condensate Drains:

Manual Condensate Drain -1/2″ Brass
Manual Condensate Drain – 1/2″ Nylon













Additional information

Pipe Size & Flow Rate

3/8", 4,5 scfm, 1/2" , 5,8 scfm, 3/4" , 8,8 scfm, 1" , 14,6 scfm, 1" , 24,7 scfm, 1 1/2" , 37,6 scfm, 1 1/2" , 57,4 scfm, 2" , 73,6 scfm, 2" , 110,4 scfm, 2 1/2" , 123,6 scfm, 3" , 158,9 scfm, 3" , 203 scfm
