Description

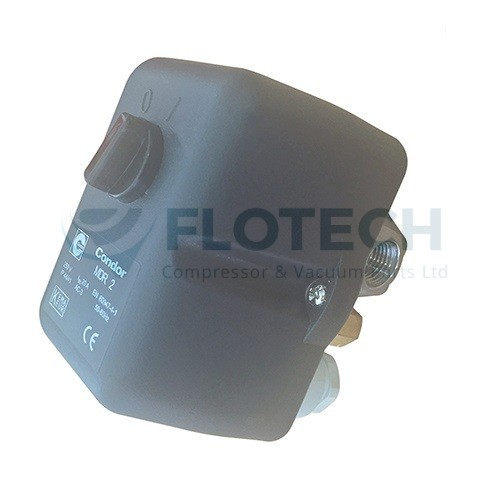

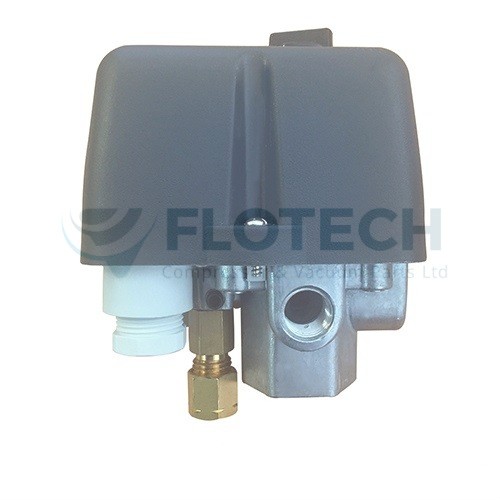

These pressure switches are used to regulate the tank pressure between two preset values on small (up to 175psi) electrically driven air compressors. They are available with an unloader valve, which prevents compressors from starting under load, and an auto-off disconnect lever for manual cut off the compressor. Has 4 ports, 1 bottom entry, 3 side.
Technical Data:
- 1x 1/4″ bsp ports
- 1/4″ straight Unloader for copper or nylon tube
- pressure range 45-175psi
- Differential (Adjustable)
- Factory setting 85-115psi
- contact arrangement NC
- 500VAC, 20amp
- IP44
- 90D x 65W x 97H
