WFITFC Series – Welded Stainless Steel Compressed Air Filters – Thread Connection 14 bar

£351.31£1,607.77

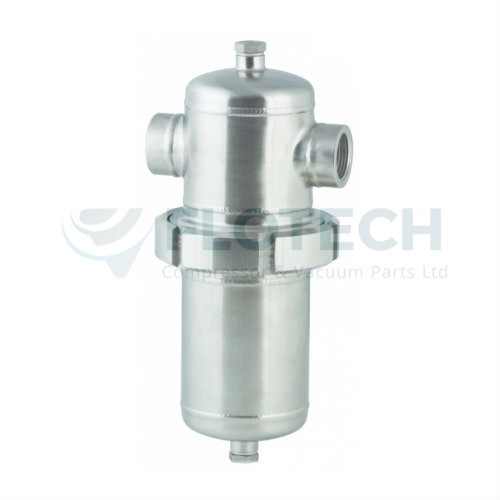

WFITFC welded stainless steel filters with threaded connections are designed for protection of the downstream compressed air system and equipment against defects and other failures.

Technical Data:

Click HERE to see WFITFC Series Filter Elements.

Clear

Description

WFITFC welded stainless steel filters with threaded connections are designed for protection of the downstream compressed air system and equipment against defects and other failures. They are used for filtration of compressed air as well as many other gasses where the risk for corrosion is very high or where stainless steel housing is required. To meet the required gas quality appropriate filter element must be installed into filter housing. Required compressed air quality according to standard ISO 8571-1 can be achieved with 8 different grades of filter elements (PI, PIW, PN, PP, PR, PM, PS and PA). Optional external condensate drains should be used for efficient condensate draining from filter housing.

Operating Pressure: 14 bar

Technical Data:

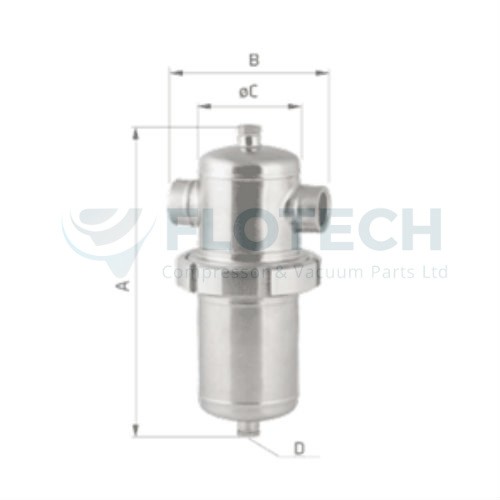

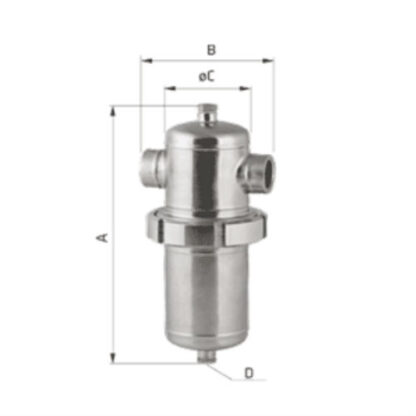

Filter Housing Size Pipe Size Operating Pressure Flow Rate at 7 bar (g), 20ºC Dimensions Mass
inch bar/psi Nm³/h scfm A (mm) B (mm) C (mm) D (mm) Kg
WFITFC 005 1/4’’ 14/232 75 44 202 116 76.1 1/2 1.9
WFITFC 007 3/8’’ 14/232 105 62 232 120 76.1 1/2 2.2
WFITFC 010 1/2’’ 14/232 150 88 230 125 76.1 1/2 2.2
WFITFC 018 3/4’’ 14/232 225 132 254 125 76.1 1/2 2.3
WFITFC 030 1’’ 14/232 315 185 275 136 88.9 1/2 3.1
WFITFC 047 1 1/4’’ 14/232 420 247 337 155 88.9 1/2 3.5
WFITFC 070 1 1/2’’ 14/232 600 353 386 180 114.3 1/2 4.8
WFITFC 094 2’’ 14/232 900 530 457 180 114.3 1/2 5.4
WFITFC 150 2’’ 14/232 1,260 742 583 180 114.3 1/2 6.1
WFITFC 175 2 1/2’’ 14/232 1,680 989 740 224 139.7 1/2 9.2
WFITFC 200 3’’ 14/174 2,400 1,413 1004 224 139.7 1/2 11.5
WFITFC 240 3’’ 14/174 3,600 2,119 1029 252 168.3 1/2 15.1

Correction Factor:

Operating pressure [bar] 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Operating pressure [psi] 29 44 58 72 87 100 115 130 145 160 174 189 203 218 232
Correction factor 0.38 0.5 0.63 0.75 0.88 1 1.13 1.25 1.38 1.5 1.63 1.75 1.88 2 2.13

Condensate Drain:

Manual Condensate Drain











Differential Pressure Indicator:

Differential High Pressure Stainless Steel Indicator

Accessories:

Nipple 20SS
Nipple M

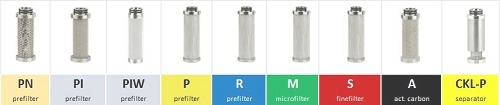

Filter Elements:

Filter Element Type Flow Rate Filter Housing
Nm³/h
0310 75 WFITFC 005
0410 105 WFITFC 007
0420 150 WFITFC 010
0520 225 WFITFC 018
0525 315 WFITFC 030
0725 420 WFITFC 047
0730 600 WFITFC 070
1030 900 WFITFC 094
1530 1,260 WFITFC 150
2030 1,680 WFITFC 175
3030 2,400 WFITFC 200
3050 3,600 WFITFC 240





Additional information

Pipe Size - Flow Rate

1/4" – 44 scfm, 3/8" – 62 scfm, 1/2" – 88 scfm, 3/4" – 132 scfm, 1" – 185 scfm, 1 1/4" – 247 scfm, 1 1/2" – 353 scfm, 2" – 530 scfm, 2" – 742 scfm, 2 1/2" – 989 scfm, 3" – 1,413 scfm, 3" – 2,119 scfm
