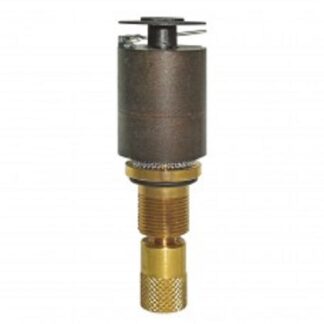

Automatic Condensate Drain AOK16FFC (16 Bar)

£44.50

AOK16FFC has been developed for fully automatic discharging of condensate or any other non-aggressive fluid from compressed air(1) system.

Description

AOK16FFC has been developed for fully automatic discharging of condensate or any other non-aggressive fluid from compressed air(1) system. AOK16FFC is easy to install inside to the filter housing. Pressure resistant floater rises based on liquid level and operates servo operated valve do discharge condensate from compressed air system. Integrated dirt screen prevents large contaminants to enter the valve and therefore assures reliable operation. AOK16FFC also have possibility for manual discharge of for depressurisation by untightening screw on the bottom of the drain.

Applications

  • Cyclone condensate separator
  • Air filter

Technical Specification

Operating Temperature 1,5 – 65 °C (35 -149 °F)
Operating Pressure 0 – 16 bar (g)     0 – 232 psi
Operating Media Condensate (air, water, oil); Non-aggressive
Connection M14
Discharge connection 1/8″
Weight 0,05kg
Valve type Servo acting, (Normally closed)
Discharge capacity 7l/h (at 7barg) ; 9,1l/h (at 16barg)

Material

Body Brass
Floater Nitrophyl
Sealing NBR
Other parts POM, Stainless Steel
