Automatic Condensate Drain AOK13PAFC (13 Bar)

£28.00£50.00

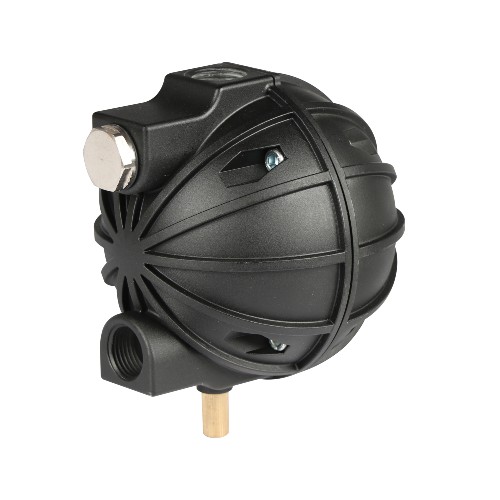

AOK 13PAFC has been developed for fully automatic discharging of condensate or any other non-aggressive fluid from compressed air(1) system.

Description

AOK 13PAFC has been developed for fully automatic discharging of condensate or any other non-aggressive fluid from compressed air(1) system. The unit can be installed as external drain on any application specified below. Condensate accumulates in reservoir and when the level is high enough condensate is being discharged from the system. Direct acting valve is operated by precise level controlled floater which assures reliable and efficient operation. AOK13PAFC has the options of vertical or horizontal connection depending on space available and application.

Applications

  • Air Compressor (piston or screw)
  • After-cooler
  • Cyclone condensate separator
  • Pressure vessel/Air Tank
  • Air Dryer
  • Air Filter

Technical Specifications

Operation pressure range 0 – 13 bar ( 0 – 188 psi)
Min. recommended operating pressure 1,5 bar (g)   21,8 psi
Drain capacity (7 bar / 101 psi) 167 1/h (0,1 scfm)
Drain capacity (13 bar / 188 psi) 226 l/h (0,13 scfm)
Operating temp. range 1,5 – 50 °C    35 – 122 °F
Operating media Condensate (air, water, oil); Non-aggressive
Inlet connection G 1/2″
Outlet connection G 1/2″
Reservoir volume 0,4 l
Mass 0,5 kg
Dimensions A x B x C (mm) 115 x 141 x 122
Dimensions with nipple D x E (mm) 198 x 58
Valve type Direct acting, normally closed
Discharge orifice cross section 1,8 mm (0,0708 inch )

Material

Housing material PA6 30% glass fibre
Fittings, Screws Brass, Brass-zinc plated, Steel
Floater Polyamide
Sealing NBR



Additional information

With Nipple

Yes, No
