CSFC/CSSSFC – Welded Condensate Separators (16 bar)

£973.50£10,994.50

CSFC condensate separators are designed for high efficient removal of bulk liquids and large impurities from compressed air systems.

CSFC – Carbon Steel / CSSSFC – Stainless Steel

Description

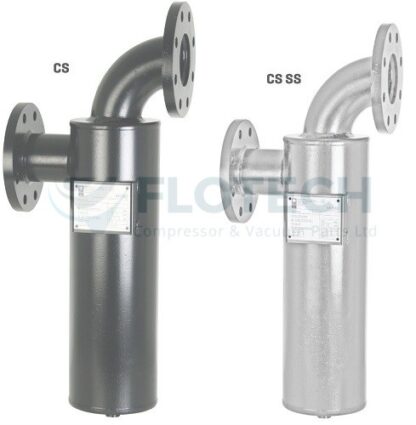

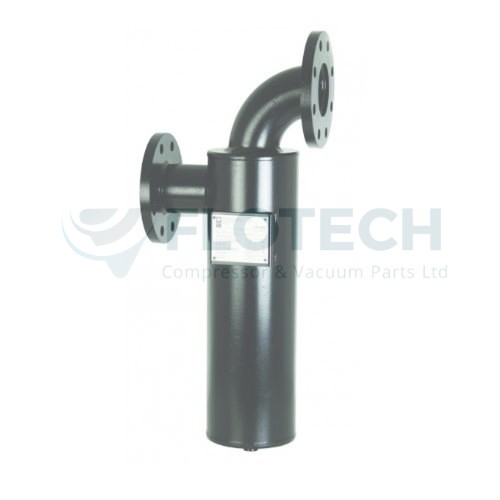

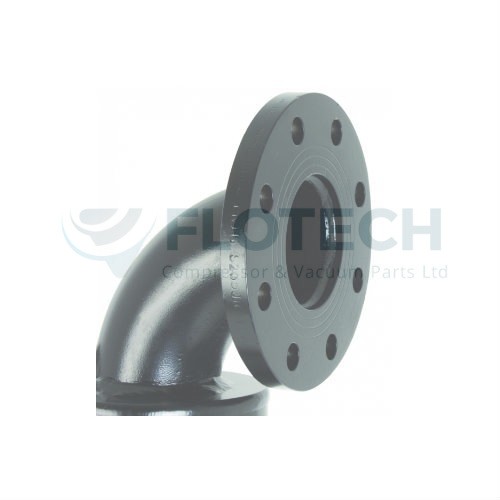

CSFC – Carbon Steel

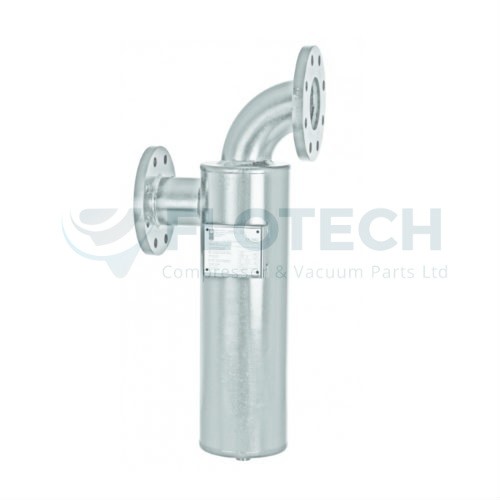

CSSSFC – Stainless Steel

CSFC condensate separators are designed for high efficient removal of bulk liquids and large impurities from compressed air systems. The insert inside the housing creates controlled rotation of the air flow. Centrifugal flow of liquids (water, oil) and large particles is forced to the housing wall, slowed down and accumulated at the bottom of separator housing as condensate. The turbulent free zone in the lower part of the cyclone housing prevents condensate from being picked up and “carried over” into the airstream. To discharge condensate from the CSFC cyclone separator it is essential to install automatic or electronic condensate drain. CSFC cyclone separators are also available in stainless steel version CSSSFC.

Operating Pressure: 16 bar

Technical Data:

Filter Model Filter Model Pipe Size Max. Oper. Pressure Flow rate at 7 bar (g), 20ºC
Temperature Operating Range

Carbon Steel Stainless Steel DN bar/psi Nm³/h scfm ºC ºF
CSFC 14 CSSSFC 14 65 16/232 840 495 1,5 – 65 35 – 149
CSFC 28 CSSSFC 28 80 16/232 1710 1005 1,5 – 65 35 – 149
CSFC 62 CSSSFC 62 125 16/232 3720 2190 1,5 – 65 35 – 149
CSFC 88 CSSSFC 88 150 16/232 5280 3110 1,5 – 65 35 – 149
CSFC 124 CSSSFC 124 200 16/232 7440 4380 1,5 – 65 35 – 149
CSFC 238 CSSSFC 238 300 16/232 14,280 8404 1,5 – 65 35 – 149

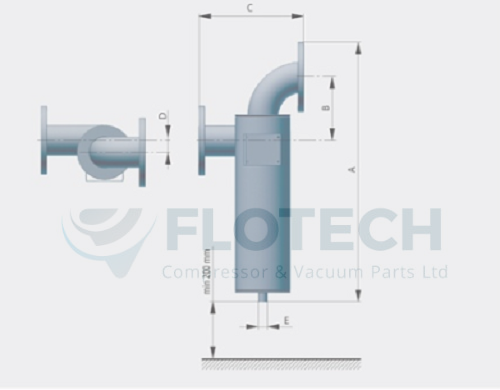

Dimensions:

CSFC 238 CSSSFC A [mm] B [mm] C [mm] D [mm] E [mm]
CSFC 14 CSSSFC 14 613 153 302 45 1/2’’
CSFC 28 CSSSFC 28 745 182 302 35 1/2’’
CSFC 62 CSSSFC 62 1041 280 390 37 1/2’’
CSFC 88 CSSSFC 88 1298 330 489 50 1/2’’
CSFC 124 CSSSFC 124 1506 436 619 52 1/2’’
CSFC 238 CSSSFC 238 1673 504 805 91 1/2’’

Correction factors:

Operating pressure [bar] 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Operating pressure [psi] 29 44 58 72 87 100 115 130 145 160 174 189 203 218 232 247 261 276 290
Correction factor 0.38 0.5 0.63 0.75 0.88 1 1.13 1.25 1.38 1.5 1.63 1.75 1.88 2 2.13 2.25 2.38 2.5 2.63

Condensate Drains:

Electronic Condensate Drain
Automatic Condensate Drain











Accessories:

Nipple 20SS
Nipple
Nipple M

Additional information

Material

CSFC (Carbon Steel), CSSSFC(Stainless Steel)

Pipe Size & Flow Rate

65 DN, 495 scfm, 80 DN, 1005 scfm, 125 DN, 2190 scfm, 150 DN, 3110 scfm, 200 DN, 4380 scfm, 300 DN, 8404 scfm
