Description

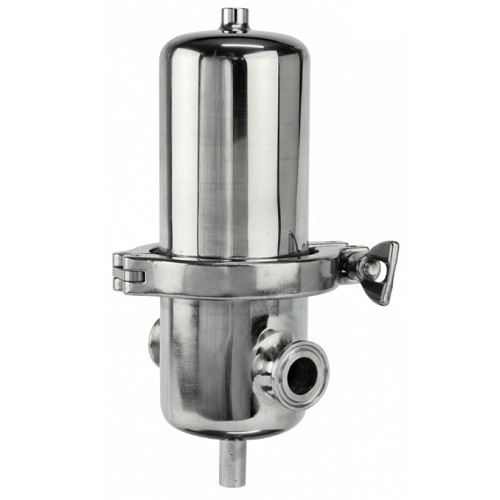

SFFC stainless steel sterile filters are designed for high-efficient sterile filtration of compressed air, process air and technical gasses. SFFC sterile filters provide high-efficient removal of sub-micron particles down to 0,01μm including microorganisms (bacteria). Filter housing surface is polished down to grade Ra0,8. Required compressed air quality according to standard ISO 8571-1 can be achieved with appropriate filter element. All components meet the FDA requirements for contact with food in accordance with the Code of Federal Regulations (CFR), title 21.
Operating Pressure: 10 bar
Technical Data:
| Filter Housing Size |
Pipe Size | Max. Oper. Pressure | Flow rate at 7 bar(g), 20ºC |
Dimensions (mm) |
Mass | |||||
| DN | bar/psi | Nm³ | scfm | A | B | C | D | E (inch) | kg | |
| SFFC 006 | 10 | 10/145 | 75 | 44 | 218 | 125 | 76.1 | 74 | 1/8’’ | 1.6 |
| SFFC 009 | 10 | 10/145 | 105 | 62 | 246 | 125 | 76.1 | 74 | 1/8’’ | 1.6 |
| SFFC 012 | 15 | 10/145 | 150 | 88 | 251 | 120 | 76.1 | 78 | 1/8’’ | 1.8 |
| SFFC 018 | 15 | 10/145 | 225 | 132 | 275 | 120 | 76.1 | 78 | 1/8’’ | 1.8 |
| SFFC 032 | 25 | 10/145 | 315 | 185 | 303 | 169 | 114.3 | 99 | 1/4’’ | 3.1 |
| SFFC 048 | 32 | 10/145 | 600 | 353 | 363 | 169 | 114.3 | 90 | 1/4’’ | 3.4 |
| SFFC 072 | 40 | 10/145 | 900 | 530 | 446 | 169 | 114.3 | 65 | 1/4’’ | 3.6 |
| SFFC 108 | 50 | 10/145 | 1260 | 742 | 587 | 183 | 114.3 | 110 | 1/4’’ | 4.9 |
| SFFC 144 | 65 | 10/145 | 1680 | 989 | 763 | 195 | 139.7 | 136 | 1/4’’ | 8.4 |
| SFFC 192 | 80 | 10/145 | 2400 | 1413 | 1015 | 195 | 139.7 | 136 | 1/4’’ | 10.2 |
Correction Factor:
| Operating pressure [bar] | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Operating pressure [psi] | 29 | 44 | 58 | 72 | 87 | 100 | 115 | 130 | 145 | 160 | 174 | 189 | 203 | 218 | 232 |
| Correction factor | 0.38 | 0.5 | 0.63 | 0.75 | 0.88 | 1 | 1.13 | 1.25 | 1.38 | 1.5 | 1.63 | 1.75 | 1.88 | 2 | 2.13 |
Filter Elements:
| Filter Element Type | Flow Rate | Filter Housing |
| Nm³/h | ||
| 310 | 75 | SFFC 006 |
| 410 | 105 | SFFC 009 |
| 420 | 150 | SFFC 012 |
| 520 | 225 | SFFC 018 |
| 530 | 315 | SFFC 032 |
| 730 | 600 | SFFC 048 |
| 1030 | 900 | SFFC 072 |
| 1530 | 1,260 | SFFC 108 |
| 2030 | 1,680 | SFFC 144 |
| 3030 | 2,400 | SFFC 192 |
