SPFFC- Stainless Steel Sterile Filters (14 Bar)

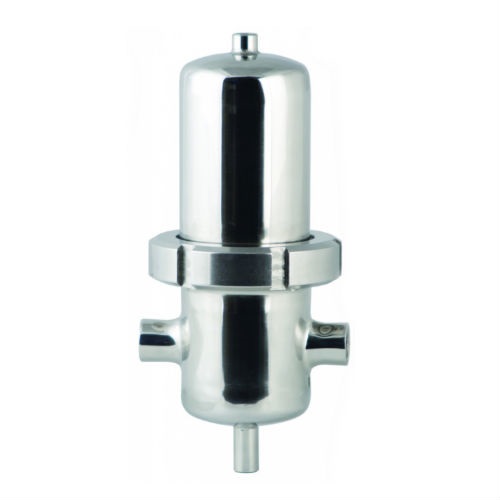

SPFFC stainless steel sterile filter housings are specially designed for applications in process industry, where the risk for corrosion of compressed air system components is very high.

Technical Data:

Click HERE to see all SPFFC Series Filter Elements.

This product is currently out of stock and unavailable.

Description

SPFFC stainless steel sterile filter housings are specially designed for applications in process industry, where the risk for corrosion of compressed air system components is very high. Required compressed air quality according to standard ISO 8571-1 can be achieved with appropriate filter element. SPFFC process filter housing can be used in variety of applications. For applications not listed please contact producer or your local distributor. For oil removal, coalescing filter element must be installed and flow direction inside-out must be provided. General arrangement is filter head on the bottom and filter bowl on the top.

Operating Pressure: 14 bar

Condensate Drains:

Drain Valve 1/4″ or 1/2″









Technical Data:

Filter Housing Size



Pipe Size Oper. Pressure Flow Rate at 7 bar(g), 20ºC
Dimensions  Mass

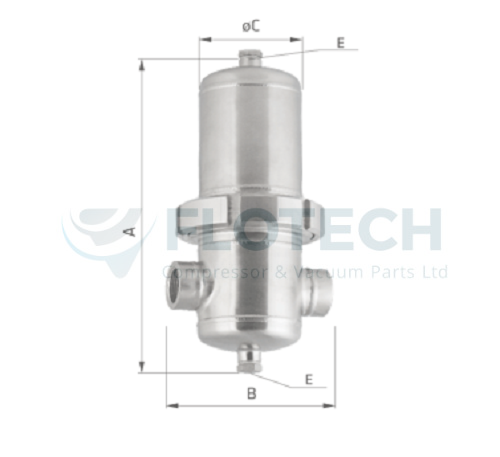

inch bar/psi Nm³/h scfm A (mm) B (mm) C (mm) D (inch) kg
SPFFC 005 1/4’’ 16/232 75 44 225 116 76.1 1/8’’ 1.7
SPFFC 007 3/8’’ 16/232 105 62 251 120 76.1 1/8’’ 1.9
SPFFC 010 1/2’’ 16/232 150 88 253 125 76.1 1/8’’ 1.9
SPFFC 018 3/4’’ 16/232 225 132 281 125 76.1 1/8’’ 2
SPFFC 030 1’’ 16/232 315 185 290 136 88.9 1/8’’ 2.6
SPFFC 047 1 1/4’’ 16/232 420 247 357 155 88.9 1/8’’ 3
SPFFC 070 1 1/2’’ 16/232 600 353 408 179 114.3 1/4’’ 4.3
SPFFC 094 2’’ 16/232 900 530 476 179 114.3 1/4’’ 4.8
SPFFC 150 2’’ 16/232 1260 742 602 180 114.3 1/4’’ 5.3
SPFFC 175 2 1/2’’ 16/232 1680 989 762 224 139.7 1/4’’ 9
SPFFC 200 3’’ 12/174 2400 1413 1030 224 139.7 1/4’’ 10.8
SPFFC 240 3’’ 12/174 3600 2119 1035 238 154 1/4’’ 16.2

Correction Factors:

Operating pressure [bar] 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Operating pressure [psi] 29 44 58 72 87 100 115 130 145 160 174 189 203 218 232
Correction factor 0.38 0.5 0.63 0.75 0.88 1 1.13 1.25 1.38 1.5 1.63 1.75 1.88 2 2.13

Filter Elements:

Filter Element Type Flow Rate Filter Housing



Nm³/h
310 75 SPFFC 005
410 105 SPFFC 007
420 150 SPFFC 010
520 225 SPFFC 018
525 315 SPFFC 030
725 420 SPFFC 047
730 600 SPFFC 070
1030 900 SPFFC 094
1530 1,260 SPFFC 150
2030 1,680 SPFFC 175
3030 2,400 SPFFC 200
3050 3,600 SPFFC 240





Additional information

Pipe Size & Flow Rate

1/4", 44 scfm, 3/8",62 scfm, 1/2", 88 scfm, 3/4", 132 scfm, 1", 185 scfm, 1 1/4", 247 scfm, 1 1/2", 353 scfm, 2", 530 scfm, 2", 742 scfm, 2 1/2", 989 scfm, 3", 1,413 scfm, 3", 2,119 scfm

Filter Element

PN (25 ; 5 micron), PI (20 ; 1 micron), PIW (20 ; 1 micron), PP (3 micron), PR (1 micron), PM (0,1 micron), PS (0,01 micron), PA (Activated Carbon), VSP (Sterile), Housing Only
