Description

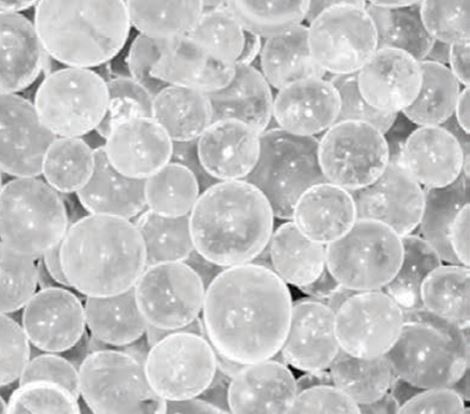

Adsorbent Silica Gel SGWS is a beaded form of alumino-silica gel resistant to liquid water. It is most frequently used as a protective layer in combination with silica gel or other adsorbents such as molecular sieves, activated alumina, activated carbons and catalysts in order to increase the reliability of the system. Due to its high adsorption capacity it can also be used as standalone adsorbent. With its high resistance against hydrothermal ageing and low regeneration temperature, Silica Gel SGWS is ideal for applications where adsorbent regeneration with humid gas occurs (e.g. Heat of Compression dryers, … )

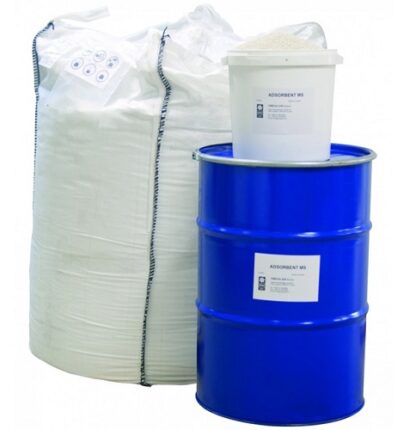

| Model | Package | Mass |
| SGWS – S | 5,8 L container | 4 kg |
| SGWS – M | 16,6 L container | 11,5 kg |
| SGWS – L | 35,4 L container | 24 kg |
| SGWS – XL | 220 L barrel | 150 kg |
| SGWS – XXL | Big Bag | 750 kg |
Application:
- Protective buffer in adsorbent beds
- Drying of compressed air
- Heat of compression regenerated compressed air dryers
Technical Data:
| Appearence | Spherical beads |
| Material | SiO² (97%wt) Al²O³ (3%wt) |
| Grain Size | approx. 2-5 mm |
| Surface Size (BET) | 650 m²/g |
| Bulk Density | 700 g/l |
| Liquid water resistane | YES |
| Equilibrium capacity (water vapor @ 25°C) | 10% r.h =4% wt |
| 80% r.h =42% wt |
