BF Series – Welded Carbon Steel Compressed Air Filters (16 bar)

£1,228.51£9,294.02

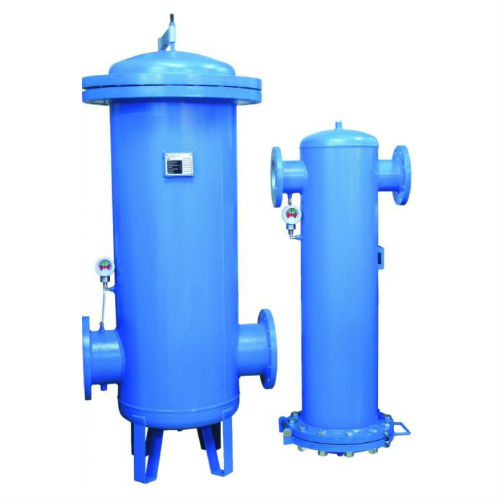

BF filters are designed for protection of the downstream compressed air system and equipment against defects and other failures.

Technical Data:

Click HERE to see all BF Series Filter Elements.

Clear

Description

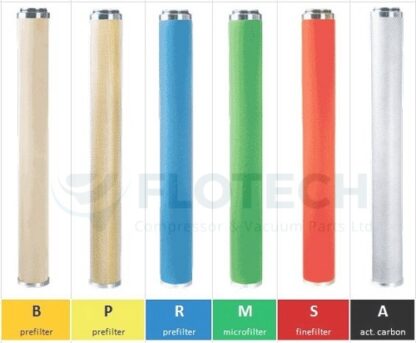

BF filters are designed for protection of the downstream compressed air system and equipment against defects and other failures. Due to their robust welded carbon steel construction, are used for installation in heavy industrial applications with high air flows.They ensure high efficient removal of solid particles, water, oil aerosols, hydrocarbons, odour and vapours from compressed air systems up to 16 bar. Required compressed air quality according to standard ISO 8571-1 can be achieved with 6 different grades of filter elements (B, P, R, M, S and A). Optional external condensate drains should be used for efficient condensate draining from filter housing. Fluid group 1 on request.

Characteristics:

Operating pressure  16 bar
 Volume flow rate  1680 to 31400 Nm3/h
 Connections  DN80 to DN300
 Operating temp. range       1,5 to 65 °C
 Standard colour  RAL 5012

Applications:

• general industrial applications
• automotive
• electronics
• food and beverage
• chemical
• petrochemical
• plastics
• paint
Technical Data:
Filter Housing Size Pipe Size Max. Oper. Pressure  Flow Rate at 7 bar(g), 20 °C
DN bar/psi Nm³/h scfm
BF 0240 80 16/232 1,680 989
BF 0300 100 16/232 3,150 1,853
BF 0450 125 16/232 4,700 2,765
BF 0600 150 16/232 6,300 3,706
BF 0900 150 16/232 9,400 5,530
BF 1200 200 16/232 12,550 7,382
BF 1500 200 16/232 15,700 9,235
BF 1800 250 16/232 18,850 11,088
BF 2500 250 16/232 25,100 14,765
BF 3000 300 16/232 31,400 18,481

Dimensions & Mass

Dimensions [mm] Mass
C kg
1170 450 1645 219 177 61
1340 560 1780 324 227 115
1340 560 1780 324 227 123
1425 620 1810 368 265 178
1480 680 1850 419 650 218
1835 792 510 508 320
1880 918 535 610 455
1950 955 555 610 500
2060 1042 645 711 590
2130 1085 680 711 684

Please note:

  • B Filter element can be cleaned with ultrasonic bath or with back flushing. Interval of cleaning depends on application. If necessary replace filter element with new one.
  • A Filter element should be changed periodically to assure proper quality of air, but at least every 6 months. Activated carbon filters must not operate in oil saturated conditions.

Correction Factors

Operating pressure [bar] 2 3 4 5 6 7 8
Operating pressure [psi] 29 44 58 72 87 100 115
Correction factor 0.38 0.5 0.63 0.75 0.88 1 1.13
Operating pressure [bar] 9 10 11 12 13 14 15 16
Operating pressure [psi] 130 145 160 174 189 203 218 232
Correction factor 1.25 1.38 1.5 1.63 1.75 1.88 2 2.13

Condensate Drains

Electronic Superplus Drain – No Loss
Automatic Condensate Drain – 1/2″













Differential Pressure Indicator

Differential Pressure Gauge – MDA60 (20 bar)













Accessories

Nipple – Operating Pressure: 20 bar













Additional information

Pipe Size & Flow Rate

80 DN / 989 scfm, 100 DN / 1,853 scfm, 125 DN / 2,765 scfm, 150 DN / 3,706 scfm, 150 DN / 5,530 scfm, 200 DN / 7,382 scfm, 200 DN / 9,235 scfm, 250 DN / 11,088 scfm, 250 DN / 14,765 scfm, 300 DN / 31,400 scfm
